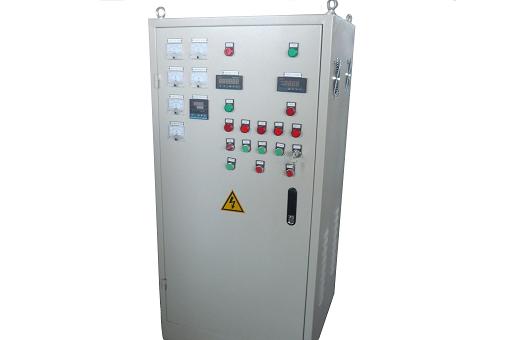

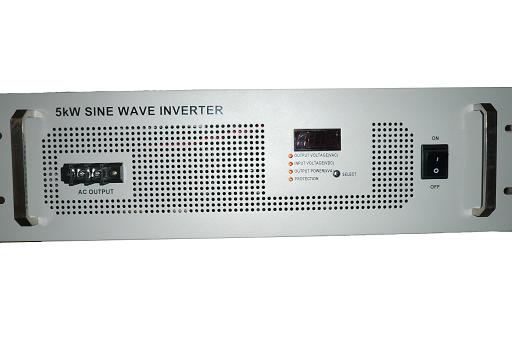

Inverter

The inverter is designed for new energy generating system, mainly for solar photovoltaic power plants, wind power generation power plants, the hybrid power generation system of wind, solar, diesel oil and energy-storage.

      It has perfect protection function, suce as low battery protection, over load protection, shorted circuit protection, over temperature protection, pole-confusion protection etc. A LCD display all system information. It also has the advantages of Reliability and High efficiency:



POWER RATE



200W-50KW

WORK TYPE

            DC-AC inverter

DC Input

Rated Voltage VDC



24-105.60

Voltage range VDC

24-380

Input current (no-load)



105.6VDC



<0.3

AC Output

Output Voltage

110/220/380VAC±5%

Output Frequency

50/60Hz±0.5%

Output Waveform

Pure sine wave

System Efficiency

>85%

Total Harmonic Distortion（THD）

<3%

Stabilization Time（ms）

<100

Crest Factor

>3:1(It can be customized)

Peak of Power (W)

2 times of the rated

Weight

N/A

Dimensions

（L×H×W）

N/A

yawp（1M）

≤40dB

Work Environment

Cooling-down Method

Air blast cooling

Environment Temperature

-20℃～45℃/-40℃～85℃

Relative Humidity

20%～90% (No dew)

Height above sea level （M）

≤1000

Max temperature rise (℃)

60

Storage Temperature (℃)

-30～70
